Process metering pumps

There is no room for compromise in high-end applications in the petrochemical, oil and gas industries. Risks associated with the metering of toxic, corrosive and flammable liquids must be fully eliminated. Reliable metering pumps need to be able to withstand very high-pressure levels and extreme temperatures.

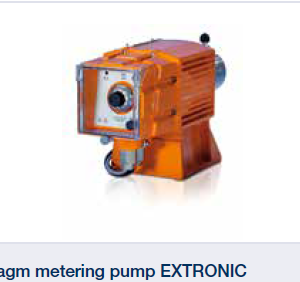

Diaphragm metering pump EXTRONIC
The diaphragm metering pump EXTRONIC is perfectly suited to the sensitive application of liquid media in facilities at risk of gas explosions as it is approved in compliance with the EU EX Regulation 2014/34/EU (ATEX).

Capacity range of single head pump: 1 – 60 l/h; 25 – 1 bar

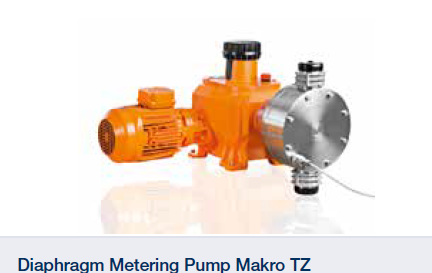

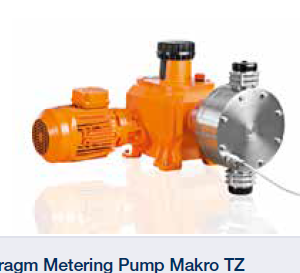

Diaphragm Metering Pump Makro TZ
The modular construction of the diaphragm metering pump MAKRO TZMb with adjustable eccentric drive mechanism and mechanically deflected multi-layer safety diaphragm enables it to be outstandingly adapted to the performance requirements of the respective application.

Capacity range of single head pump: 260 – 2,100 l/h, 12 – 4 bar

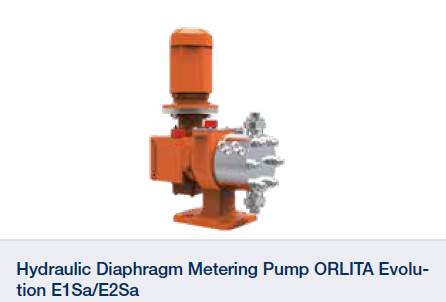

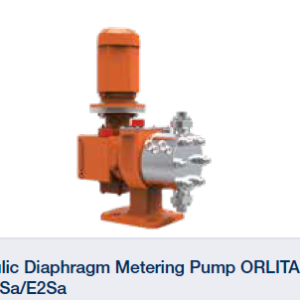

Hydraulic Diaphragm Metering Pump ORLITA Evolution E1Sa/E2Sa
As an extremely robust hydraulic diaphragm metering pump, the ORLITA Evolution E1Sa/E2Sa meets the most exacting safety requirements. It is characterised by its PTFE multi-layer diaphragm with integral diaphragm rupture warning / signalling system and unique diaphragm position control.

Capacity range of single-head pump: 0.9 – 134 l/h,260 – 30 bar

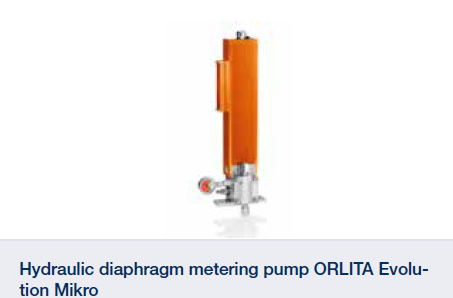

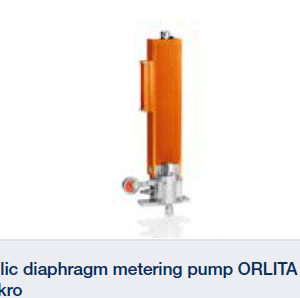

Hydraulic diaphragm metering pump ORLITA Evolution Mikro
The ORLITA Evolution mikro is an innovative micro-metering pump for high pressures. The hydraulic diaphragm metering pump is the first of its kind with an electronically
regulated linear direct power end. The power end has few mechanical functional elements and thus operates with virtually minimal maintenance.

Capacity range 0.01 – 18 l/h, 260 – 10 bar

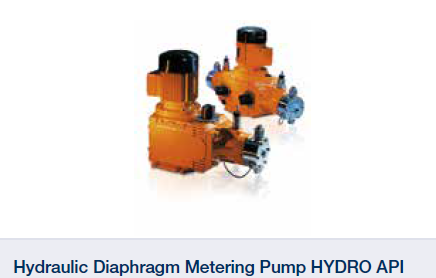

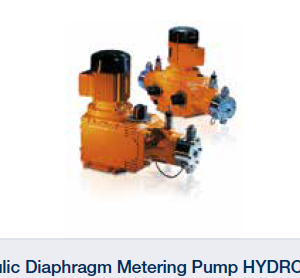

Hydraulic Diaphragm Metering Pump HYDRO API
The HYDRO API 675 is an extremely robust hydraulic diaphragm metering pump, which meets the most exacting safety requirements and is designed in accordance with API 675. This is ensured by the PTFE multi-layer diaphragm with diaphragm monitoring, the full-motion drive and automatic bleeding, for example. Its modular construction makes it extremely versatile.

Capacity range of single-head pump: 7 – 1,506 l/h, 100 – 7 bar

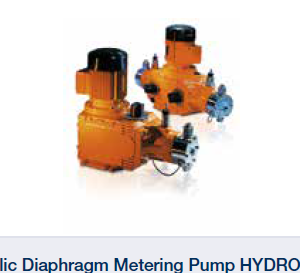

Hydraulic Diaphragm Metering Pump HYDRO Classic
As an extremely robust hydraulic diaphragm metering pump, the HYDRO range meets the most exacting safety requirements. Its modular construction, with either one or two dosing heads, 4 gear ratios, 2 dosing head sizes and 3 dosing head materials, offers a very high degree of flexibility in terms of areas of application.

Capacity range of single-head pump: 3 – 1450 l/h, 100 – 7 bar

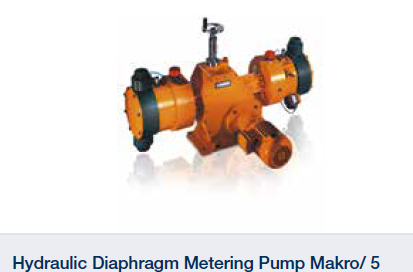

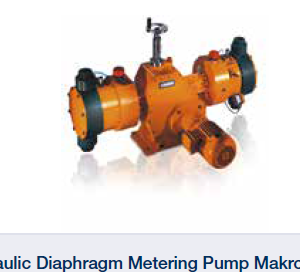

Hydraulic Diaphragm Metering Pump Makro/ 5
The robust hydraulic diaphragm metering pump Makro/ 5 guarantees outstanding process reliability. Its modular
construction offers extremely good flexibility and a large range of drive versions are available.

Capacity range of single pump: 450 – 6,108 l/h, 25 – 6 bar

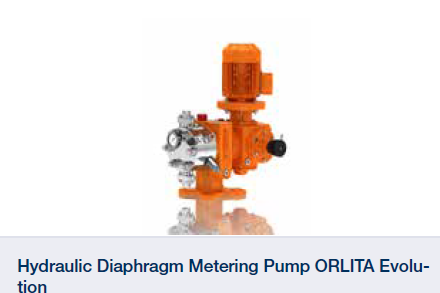

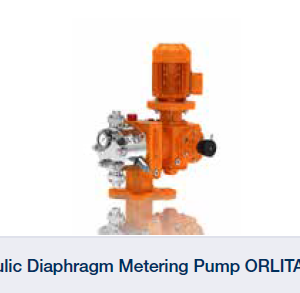

Hydraulic Diaphragm Metering Pump ORLITA Evolution
The ORLITA Evolution meets the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump. It is characterised by its PTFE multi-layer
diaphragm with integral diaphragm rupture warning/signalling and unique diaphragm position control.

Capacity range of single-head pump: 3 – 7400 l/h, 400 – 10 bar

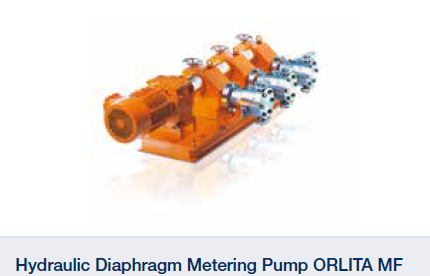

Hydraulic Diaphragm Metering Pump ORLITA MF
The hydraulic diaphragm metering pump ORLITA MF offers reliable dosing rates even under high pressure and has a modular construction, making it highly versatile.
Thanks to its modular design, this pump is tailored to meet your requirements even at very high pump capacities.

Capacity range of single-head pump: 0 – 14,000 l/h;450 – 30 bar

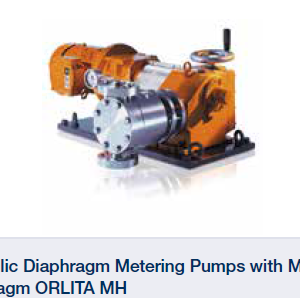

Hydraulic Diaphragm Metering Pumps with Metal Diaphragm ORLITA MH
The diaphragm metering pump ORLITA MH has a robust metal diaphragm. This permits precise pump capacities even at very high pressure. The ORLITA MH has a modular construction and is therefore very versatile. For example, a range of drive versions is available and drives and dosing heads can be freely combined.

Capacity range of single pump: up to 320 l/h, up to 780 bar

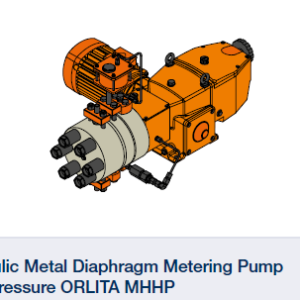

Hydraulic Metal Diaphragm Metering Pump High-pressure ORLITA MHHP
The metal diaphragm metering pumps ORLITA MHHP are special pumps, which provide precise pump capacities even at maximum pressures of up to 3000 bar.

Capacity range of single pump: 3 – 11 l/h, 3,000 bar

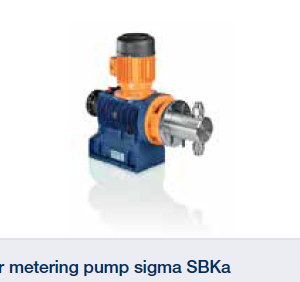

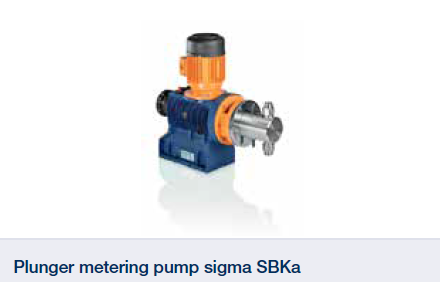

Plunger metering pump sigma SBKa
The plunger metering pump Sigma SBKa is an extremely robust plunger metering pump with high-performance plunger and the option to adjust the pump capacity in 0.2% increments. It offers a wide range of power end versions, such as three-phase or 1-phase AC motors, even for Exe and Exde areas with ATEX certification.

Capacity range 2 – 76 l/h, 320 – 12 bar

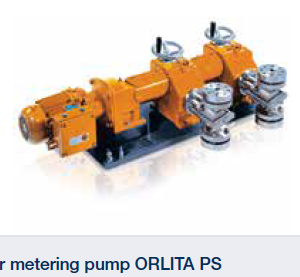

Plunger metering pump ORLITA PS
The high-performance plunger metering pump ORLITA PS enables precise pump capacities even at maximum pressure and temperatures of up to +400 °C. The ORLITA PS pump has a modular construction and is therefore very flexible.

Capacity range of single-head pump: 0 – 2800 l/h, 600– 11 bar

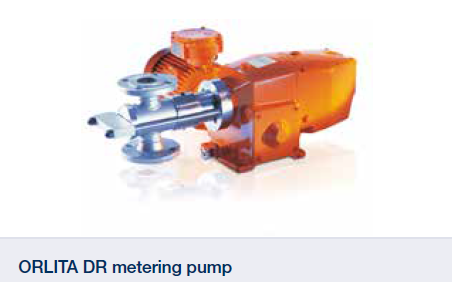

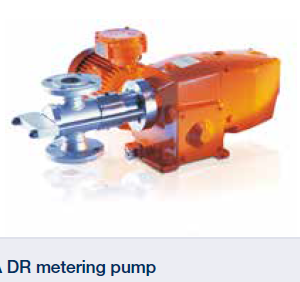

ORLITA DR metering pump
The plunger metering pump ORLITA DR does not need valves and can therefore be operated within a broad stroke rate range. It is therefore suitable for use with high-viscosity and extremely high-viscosity media of up to 106 mPas within a wide temperature range of -40 °C to 400 °C.

Capacity range of single-head pump: 0 – 2000 l/h, 400 – 5 bar
