Chemical transfer pumps

Chemical transfer pumps are used to pump liquids from tank A to tank B. Different media have very different chemical properties so the feed pumps need different functional principles. Liquid and pump must be fully compatible.

Eccentric Screw Pump SPECTRA
The eccentric screw pump SPECTRA meters liquid polyelectrolytes in concentrated and dilute form. It can be used, for example, in wastewater treatment or sludge dewatering.

Capacity range 2.4 – 12,000 l/h, 12 – 3 bar

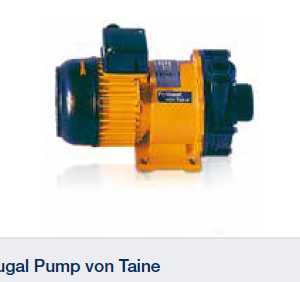

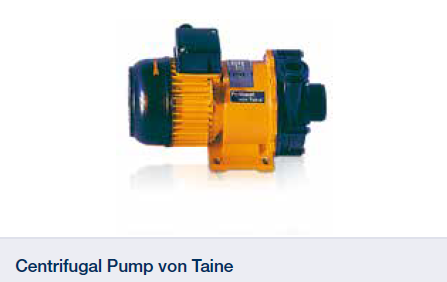

Centrifugal Pump von Taine
The solenoid-coupled centrifugal pump von Taine for the pumping of liquid media works safely and reliably: liquid media are pumped leak-free.

Capacity range up to 22,500 l/h, discharge lift up to 23.5 m WC

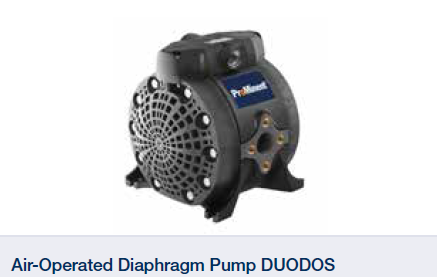

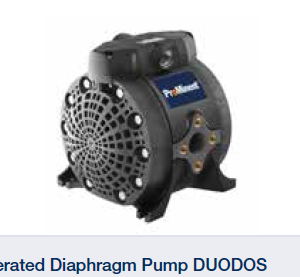

Air-Operated Diaphragm Pump DUODOS
Air-operated Diaphragm Pump DUODOS for pumping liquid media.

Capacity range up to 12,000 l/h, discharge lift up to 70 m WC

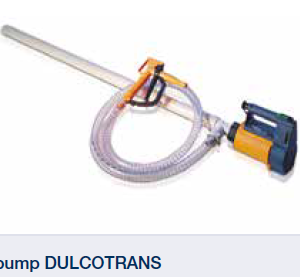

Barrel pump DULCOTRANS
The field of application of DULCOTRANS depends on the chemical resistance of the materials used.

Pump capacity according to size from 2,800 –6,600 l/h

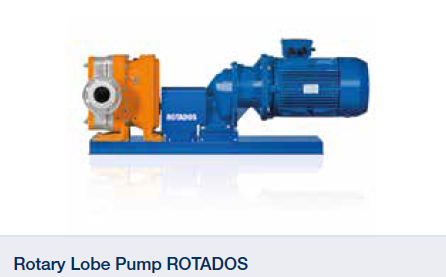

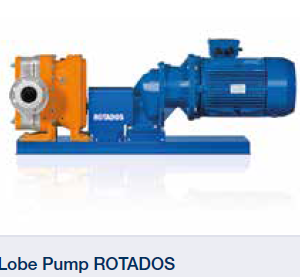

Rotary Lobe Pump ROTADOS
The compact rotary lobe pump pumps viscose and even abrasive media at up to 100 m³/h and also with reversible pumping direction thanks to its valveless construction.
Housing, plunger and seals are available in different materials to match the medium.

Capacity range 25–100 m3/h, 10–4 bar
