Sleeved & Lined Plug Valves

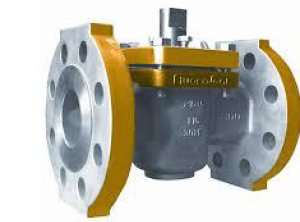

Sleeved Plug Valves

Sizes: ½” – 18”
Pressure Class: #150 #300 #600
Temperatures: Maximum operating temperatures 260 Degree Celsius
Materials: WCB, Stainless steel 304, and 316, nickel, Hastelloy, titanium
End Connections: Socket Weld, Buttweld, Flanged
Operated: Level, Actuator
Options: reduced port, full bore, cage control
Application: water, air. gases, vapor and fuels

Lined Plug Valves

Sizes: ½” – 18”
Pressure class : #150 #300 #600
Temperatures: Maximum operating temperatures 260 Degrees Celsius
Materials: WCB, lined PFA, Body Plug
End connections: flanged
Operated: Level, Actuator
Options: Reduced Port, Full Bore, Cage Control
Application: Corrosive chemicals, chemicals, fuel and oils

Monel Sleeved Plug Valves

Materials of construction:

ANS / ASME
Body ASTM A494 Gr. M35-1
Plug ASTM A494 Gr. M35-1

Cover ASTM A216 Gr. WCB*
Cover bolts: ASTM A193 Gr. B7M
Adjusting bolts: ASTM A193 Gr. B7M
Thrust Washer: ASTM A494 Gr. M35-1
Metal diaphragm: MONEL *400
Delta Ring: Flexible graphite
Cover Seal ring: flexible graphite
Diaphragm: PTFE Fluorcarbon
Sleeve: PTFE Fluorocarbon
Paint special for leak detection

BIDIRECTIONAL FLOW
QUARTER-TURN OPERATION
NON-LUBRICATED
SELF CLEANING ON EACH OPERATION
2-WAY AND MULTIPORT CONFIGURATIONNS
SPECIAL SERVICE AND JACKETED DESIGNS AVAILABLE
ALL CASTING COMPONENTS TRACEABLE TO MILL TEST CERTIFICATES
