Shackels

Commercial Shackles – Secure & Reliable Fastening Solutions

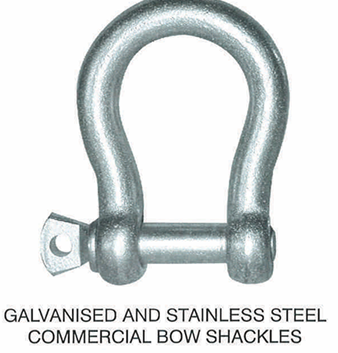

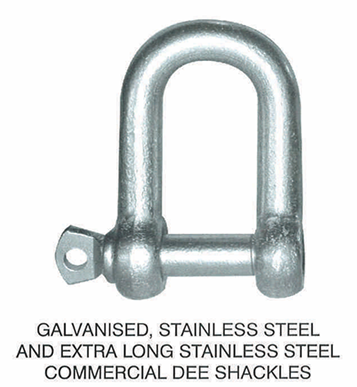

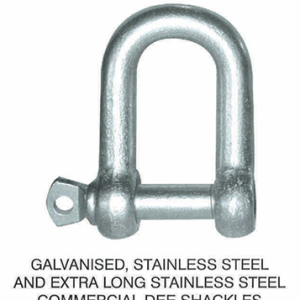

Badger Brands provides Bow and Dee commercial shackles, engineered for secure fastening in non-lifting applications.

Specifications:

• Material: Manufactured from mild steel or stainless steel grade 316.
• Finish: Available in electro-galvanized or stainless steel options.
• Size Range: Trade sizes from 5mm to 50mm, catering to various fastening needs.
• Application: Ideal for general hardware, securing loads, and structural connections.

With a focus on strength and versatility, Badger Brands Shackles deliver reliable fastening solutions for industrial, commercial, and utility applications.

Specifications are subject to change with ongoing development.

High-Performance Shackles – Strength & Reliability in Lifting Applications

Badger Brands offers premium alloy Dee & Bow shackles, engineered for secure load handling in lifting, rigging, and industrial applications. Designed to meet US Fed. Spec. RR-C-271, these shackles provide exceptional durability and safety.

Alloy Dee & Bow Shackles

• Material: High-tensile steel, Grade 6, ensuring superior strength.
• Finish: Hot-dipped galvanized for corrosion resistance (electro-galvanized nuts on smaller sizes).
• Safety Factor: 5:1, ensuring secure load handling.
• Configurations: Available with screw pin or bolt, nut & split pin options.
• Size Range: Supports working load limits (SWL) from 0.5 to 140 metric tons.

Large Dee Shackles

• Material: Alloy steel (EN14a) for enhanced durability.
• Standard Compliance: Manufactured to British Standard B.S. 3032.
• Safety Factor: 4:1, ensuring reliable performance.
• Finish: Available in hot-dipped galvanized, electro-galvanized, or self-colour options.
• Size Range: Supports SWL from 0.5 to 20 metric tons.

Designed for heavy-duty lifting and rigging, these high-performance shackles provide secure connections and load stability across construction, logistics, and industrial sectors.

Specifications are subject to change as part of ongoing product development.

Green Pin® Shackles – Premium European-Engineered Lifting Solutions

Badger Brands offers Green Pin® Shackles, a globally respected range of high-quality lifting and rigging shackles manufactured by Van Beest. Known for exceptional reliability, safety, and durability, these shackles meet international standards and are trusted across industrial, marine, and construction applications.

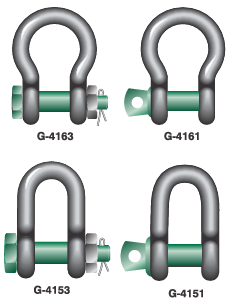

Green Pin® Standard Shackles

• Compliance: Meets EN 13889 and US Fed. Spec. RR-C-271 performance requirements.
• Certification: DNV type approved to certification note 2.7-1.
• Finish: Hot-dipped galvanized for corrosion resistance.
• Temperature Range: Operates between -20°C to +200°C.
• Configurations: Available in Dee and Bow designs with screw pin or safety bolt options.
• Load Capacities: Ranges from 0.33 tons to 85 tons, ensuring versatility in lifting applications.

Green Pin® Wide Mouth Shackles

• Material: Grade 8 alloy steel, quenched and tempered for superior strength.
• Safety Factor: MBL equals 6 x WLL, ensuring secure load handling.
• Standard Compliance: ASME B30.26 certified.
• Finish: Hot-dipped galvanized for enhanced durability.
• Load Capacities: Available in 4.75 tons to 25 tons, with extended jaw openings for specialized applications.

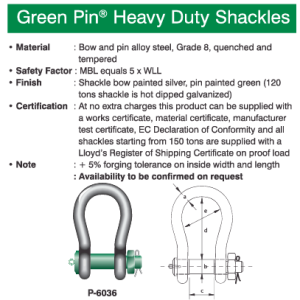

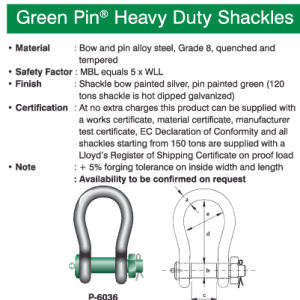

Green Pin® Heavy-Duty Shackles

• Material: Grade 8 alloy steel, designed for high-load industrial applications.
• Safety Factor: MBL equals 5 x WLL, ensuring maximum reliability.
• Finish: Silver-painted bow, green-painted pin (120-ton shackle is hot-dipped galvanized).
• Load Capacities: Supports 120 tons to 1500 tons, catering to heavy-duty lifting operations.
• Certification: Available with works certificates, material certificates, manufacturer test certificates, and Lloyd’s Register of Shipping Certificate for shackles 150 tons and above.

Green Pin® Wire Rope Clips

• Material: Drop-forged high-tensile steel (SAE 1045) for the bridge and SAE 1015 for the U-bolt.
• Standard Compliance: EN 13411-5 Type B, formerly US Federal Specification FF-C-450D.
• Finish: Hot-dipped galvanized, with electro-galvanized nuts for smaller sizes.
• Certification: Works certificates available upon request.

With precision engineering, rigorous testing, and global certification, Green Pin® Shackles provide unmatched safety and reliability for lifting, rigging, and securing loads in industrial, marine, and construction environments.

Specifications are subject to change as part of ongoing product development.
