General Specifications:
- Range: 6mm to 64mm.
- Material: Carbon steel (C15).
- Factor of Safety: 6:1.
- Finish: Electro-galvanized.
- Markings: Working load limit (for in-line pull), thread size, manufacturer mark (VL), and material grade (C15).
- Standards: Eye bolts are manufactured to DIN580 specifications, and eye nuts to DIN582 specifications.

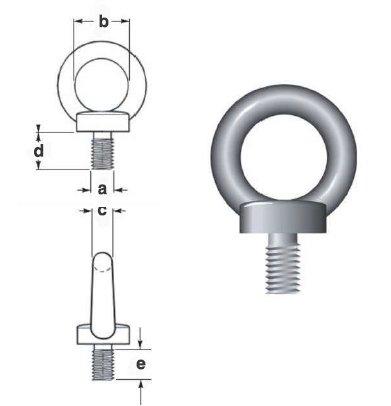

Eye Bolts:
- Product Codes: EBM06 to EBM64.
- Thread Sizes: 6mm to 64mm.
- Working Load Limits: 70kg to 16,000kg.
- Dimensions: Includes inside eye diameter, eye material thickness, shank length, thread length, and approximate weight.
- Weight Range: 0.05kg to 12.4kg.

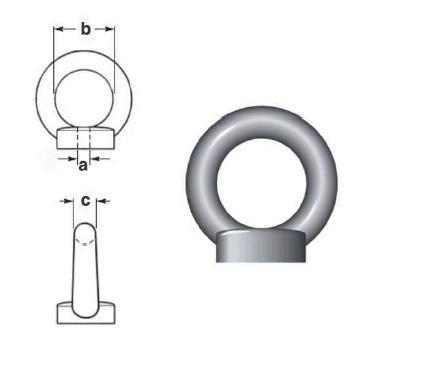

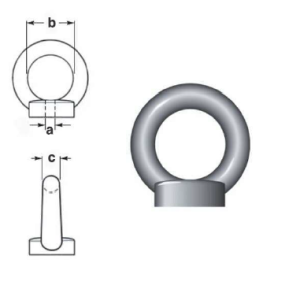

Eye Nuts:
- Product Codes: ENM06 to ENM64.
- Thread Sizes: 6mm to 64mm.
- Working Load Limits: 70kg to 16,000kg.
- Dimensions: Includes inside eye diameter, eye material thickness, and approximate weight.
- Weight Range: 0.05kg to 12.4kg.
Notes:
- Dimensions, weight, and specifications are subject to change due to continual development.
